Steel Butt-welding Pipe Fittings (DIN)

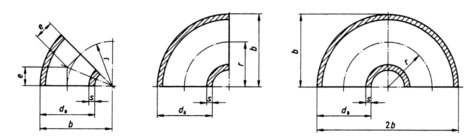

Elbows, Bends, and Caps

DIN 2605  DIN 2617								Unit: mm

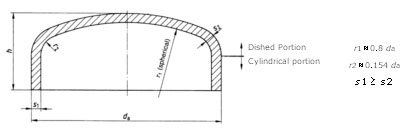

Nominal	Outside	Elbows and Bends						Caps              h
Size	Diameter	Type 3 -- 3D			Type 5 -- 5D
DN	da	r	b	e	r	b	e
15	21.3	28.0	38	12	42.5	53	18	25
20	26.9	29.0	43	12	57.5	71	24	25
25	33.7	38.0	56	16	72.5	90	30	38
32	42.4	48.0	69	20	92.5	114	38	38
40	48.3	57.0	82	24	107.5	132	45	38
50	60.3	76	106	32	135	165	56	38
65	76.1	95	133	39	175	213	73	38
80	88.9	114	159	47	205	250	85	51
100	114.3	152	210	63	270	327	112	64
125	139.7	190	260	79	330	400	137	76
150	168.3	229	313	95	390	474	162	89
200	219.1	305	414	126	510	620	211	102
250	273	381	518	158	650	787	269	127
300	323.9	457	619	189	775	937	321	152
350	355.6	533	711	221	850	1028	352	165
400	406.4	610	813	253	970	1173	402	178
450	457	686	914	284	1122	1350	465	203
500	508	762	1016	316	1245	1500	516	229
600	610	914	1219	379	1525	1830	632	267
700	711	1067	1422	442	1778	2133	737	267
800	813	1219	1626	505	2033	2439	842	267
900	914	1372	1829	568	2285	2742	947	267
1000	1016	1524	2032	631	2540	3048	1052	305
1200	1220	1830	2440	758	3050	3660	1263	343
